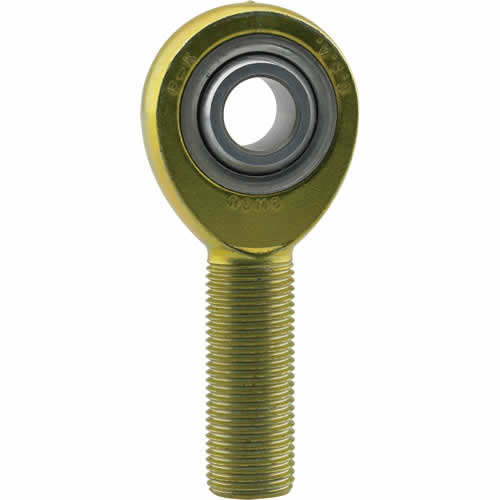

- 3-PIECE CONSTRUCTION
- HIGH STRENGTH – HEAVY DUTY SHANK
- PTFE LINER AVAILABLE
- STUDS AVAILABLE
- OPTIONAL LUBRICATION FITTING AVAILABLE
- MALE ROD END LOAD RATINGS BASED ON NO LUBRICATION FITTING
- FOR LOAD RATING WITH LUBRICATOR, CONTACT FK ENGINEERING
- BALL
- 52100 STEEL
- Rc 56 MIN
- HARD CHROME PLATED
- 52100 STEEL
- BODY
- LOW CARBON STEEL
- ZINC PLATED
- CHROMATE TREATED
- RACE
- ALLOY STEEL
- HEAT TREATED
- ZINC PLATED
- CHROMATE TREATED

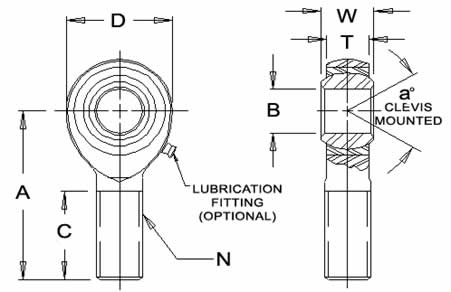

| Right Hand Part Number | Left Hand Part Number | B DIA | D DIA | W WTH | T WTH | Ball DIA | A LGTH | N THD | C LGTH | a Mis Angle | ULT Static Radial Load | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| +.0015 -.0005 | +.010 -.010 | +.005 -.005 | +.005 -.005 | REF | +.015 -.015 | UNF 3A | +.062 -.031 | REF | (lbs) | (lbs) | ||
| RSM3 | RSML3 | .1900 | .750 | .312 | .250 | .437 | 1.562 | 1/4-28 | 1.000 | 10 | 2,170 | .04 |
| RSM4 | RSML4 | .2500 | .875 | .375 | .281 | .500 | 1.875 | 5/16-24 | 1.250 | 13 | 3,523 | .07 |
| RSM5 | RSML5 | .3125 | 1.000 | .437 | .344 | .625 | 1.938 | 3/8-24 | 1.250 | 12 | 5,370 | .11 |
| RSM6 | RSML6 | .3750 | 1.125 | .500 | .406 | .719 | 2.125 | 7/16-20 | 1.375 | 10 | 7,230 | .16 |
| RSM7 | RSML7 | .4375 | 1.312 | .562 | .437 | .812 | 2.438 | 1/2-20 | 1.500 | 12 | 9,685 | .25 |
| RSM8 | RSML8 | .5000 | 1.500 | .625 | .500 | .937 | 2.625 | 5/8-18 | 1.625 | 10 | 12,843 | .38 |
| RSM10 | RSML10 | .6250 | 1.750 | .750 | .562 | 1.125 | 2.875 | 3/4-16 | 1.750 | 13 | 16,613 | .60 |
