ECONOMICAL PROTECTION FOR YOUR ROD END
DESIGNED TO FIT OVER THE EXPOSED PORTION OF THE ROD END BALL TO PROTECT AGAINST DIRT AND MOISTURE.
STANDARD PACKAGE CONTAINS SIX INDIVIDUAL SEALS, ENOUGH FOR THREE ROD ENDS. ORDER BY ROD END SIZE.
INCH SERIES

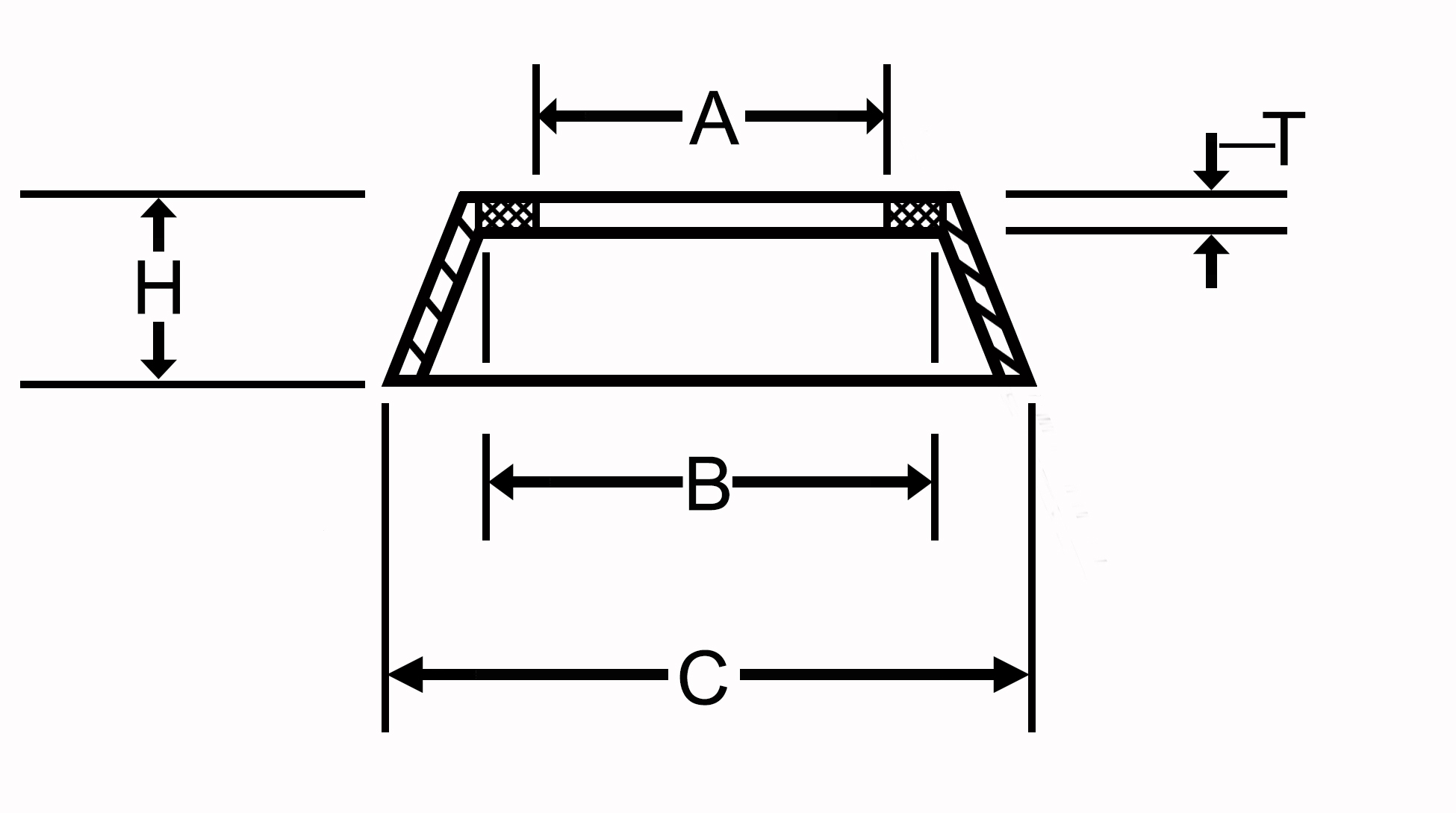

| PART NUMBER | ROD END SIZE | SIZE | A | B | C | H | T |
|---|---|---|---|---|---|---|---|
| WS1875 | 3 | .187 | .200 | .326 | .44 | .095 | .020 |
| WS2500 | 4 | .250 | .260 | .375 | .50 | .12 | .027 |
| WS3125 | 5 | .312 | .322 | .487 | .70 | .20 | .047 |
| WS3750 | 6 | .375 | .385 | .530 | .80 | .22 | .047 |
| WS4375 | 7 | .437 | .448 | .626 | .88 | .25 | .047 |
| WS5001 | 8 | .500 | .510 | .730 | 1.13 | .25 | .047 |
| WS6250 | 10 | .625 | .635 | .882 | 1.24 | .267 | .047 |
| WS7500 | 12 | .750 | .760 | 1.006 | 1.38 | .367 | .047 |
| WS1000 | 16 | 1.000 | 1.010 | 1.230 | 2.10 | 0.50 | .050 |
METRIC SERIES
| PART NUMBER | ROD END SIZE | A | B | C | H | T |
|---|---|---|---|---|---|---|
| WS5MM | 5mm | 5.25 | 8.28 | 11.22 | 2.41 | .50 |
| WS6MM | 6mm | 6.25 | 9.53 | 12.70 | 3.05 | 1.7 |
| WS8MM | 8mm | 8.25 | 12.37 | 17.78 | 5.08 | 1.2 |
| WS10MM | 10mm | 10.25 | 13.46 | 20.32 | 5.59 | 1.2 |
| WS12MM | 12mm | 12.25 | 18.54 | 28.58 | 6.35 | 1.2 |
| WS14MM | 14mm | 14.25 | 18.54 | 28.57 | 6.35 | 1.2 |
| WS16MM | 16mm | 16.25 | 22.40 | 31.70 | 6.80 | 1.2 |
| WS18MM | 18mm | 18.25 | 22.60 | 32.69 | 8.25 | 1.2 |
| WS20MM | 20mm | 20.25 | 25.15 | 38.10 | 10.16 | 1.2 |
| WS25MM | 25mm | 25.25 | 33.80 | 53.30 | 12.70 | 1.5 |
| WS30MM | 30mm | 30.25 | 36.00 | 55.88 | 13.45 | 1.5 |
