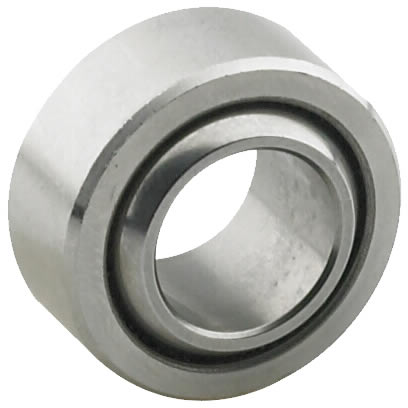

- HEAVY DUTY PRECISION SERIES
- LUBRICATION GROOVE AND HOLES IN ID & OD OF RACE
- PTFE LINER AVAILABLE (SUFFIX “T”)
- EXAMPLE: AIN12T
- PARTS WITH PTFE LINER HAVE NO LUBRICATION GROOVES OR HOLES IN RACE
- BALL
- 52100 STEEL
- Rc 56 MIN
- HARD CHROME PLATED
- RACE
- ALLOY STEEL
- HEAT TREATED
- OIL COATED
| BEARING PART NUMBER | B DIA | D DIA | W WTH | T WTH | O DIA | BALL DIA | F CHAMFER | a MIS ANGLE | ULT STATIC RADIAL LOAD | APPROX WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|
| +.0015 -.0005 | +.0000 -.0007 | +.005 -.005 | +.005 -.005 | REF. | REF. | REF. | REF. | (lbs) | (lbs) | |
| AIN3 | .1900 | .5312 | .312 | .250 | .307 | .437 | .020 | 10.5 | 6,550 | .016 |
| AIN4 | .2500 | .6094 | .375 | .281 | .331 | .500 | .020 | 14.5 | 8,427 | .023 |
| AIN5 | .3125 | .7500 | .437 | .344 | .448 | .625 | .020 | 11.0 | 12,912 | .039 |
| AIN6 | .3750 | .8437 | .500 | .406 | .516 | .719 | .020 | 9.5 | 17,512 | .059 |
| AIN7 | .4375 | 1.0000 | .562 | .437 | .587 | .812 | .020 | 11.0 | 21,290 | .079 |
| AIN8 | .5000 | 1.0937 | .625 | .500 | .699 | .937 | .020 | 9.5 | 28,110 | .110 |
| AIN10 | .6250 | 1.3125 | .750 | .562 | .839 | 1.125 | .030 | 12.0 | 37,930 | .165 |
| AIN12 | .7500 | 1.5000 | .875 | .687 | .978 | 1.312 | .030 | 10.0 | 48,675 | .252 |
| AIN14 | .8750 | 1.5000 | .875 | .687 | .978 | 1.312 | .030 | 6.0 | 48,675 | .248 |
| AIN14T-770 | .8750 | 1.6250 | .875 | .750 | 1.061 | 1.375 | .035 | 6.0 | 58,650 | .350 |
| AIN16 | 1.0000 | 2.1250 | 1.375 | 1.000 | 1.275 | 1.875 | .060 | 15.0 | 90,000 | .788 |
